Vintage Transistors Exchange / For Sale Site and interesting links
These are my devices that I would like to sale or exchange for other devices, payment can be done by PayPal and the prices are excluded shipping cost. Shipment can be done with and without insurance.
For Sale Vintage Transistors:

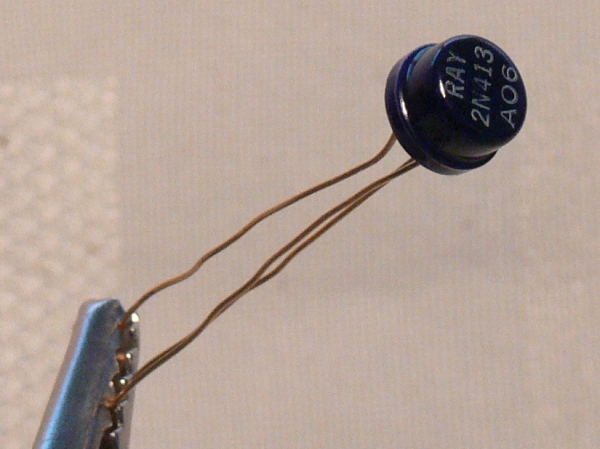

| 2N413 | Type | : | 2N413, PNP Germanium Transistor (For Sale, 10USD) |
|
|
Manufacturer | : | Raytheon (2pcs. for sale) |
| Year | : | +/-1960 (AO6) | |
| Package, Case style | : | None, TO-5 | |
| Spec's | : | Vceo=-18V, Vcbo=-30V, Power Gain=?dB, Hfe=30, Ic=-200mA, Icbo=5uA, P=150mW, ft=2.5MHz, Cobo=12pF | |
| Photo's | : | Photo1 |
| 2N307A | Type | : | 2N307A, PNP Power Germanium Transistor (For Sale, 10USD/7pcs.) |
|
|
Manufacturer | : | Tung-Sol |
| Year | : | 020, week 20 1960 | |
| Package, Case style | : | none, TO-3 | |
| Spec's | : | Vceo=-35V, Vcbo=-35V, Hfe=30-50, Ic=-5A, P=106W, f(T)=3.5kHz | |
| Photo's | : | Picture1 |

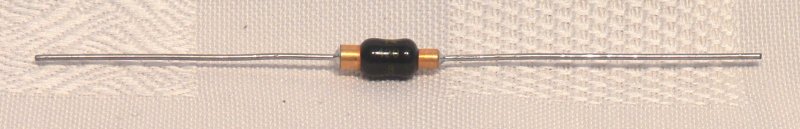

| 420B | Type | : | 420B Germanium Diode (Totally 4pcs.), (For Sale, 10USD/each) |
|
|
Manufacturer | : | Western Electric (2pcs. for sale) |
| Year | : | 691, January 1969 | |
| Package, Case style | : |
Plastic envelope, ? |
|
| Spec's | : | Unknown data, (Who can help me with the technical data?) | |
| Photo's | : | Picture1 |

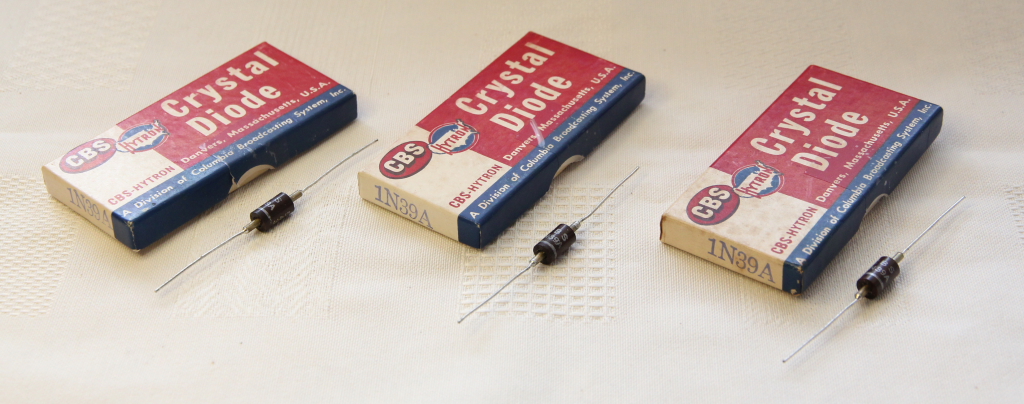

| 1N39A | Type | : | 1N39A, Germanium Diode, (For Sale, 20USD/each) |
|
|
Manufacturer | : | CBS-Hytron, "Colombia Broadcasting System” |
| Year | : | End Fifties | |
| Package, Case | : | Carton box, DO-7? | |
| Spec's | : | Forward Current (at1V)= 5-65uA, Reverse Voltage=225V(max) | |
| Photo's | : | Picture1 |
| 1N434 | Type | : | 1N434, Silicon Diode (For Sale, 15USD/each.) |
|
|
Manufacturer | : | Raytheon (2pcs. for sale) |
| Year | : | Week 13, 1960 | |
| Package, Case style | : | Carton sleeve, Can (smaller than a CK722) | |
| Spec's | : | Peak Reverse Voltage (Vrrm)=180V(max), Peak Forward Current=300mA, Max. Reverse Current (Irm)= 10nA(max), Imax Output Current (Ia)=35mA | |
| Photo's | : | Picture1 |

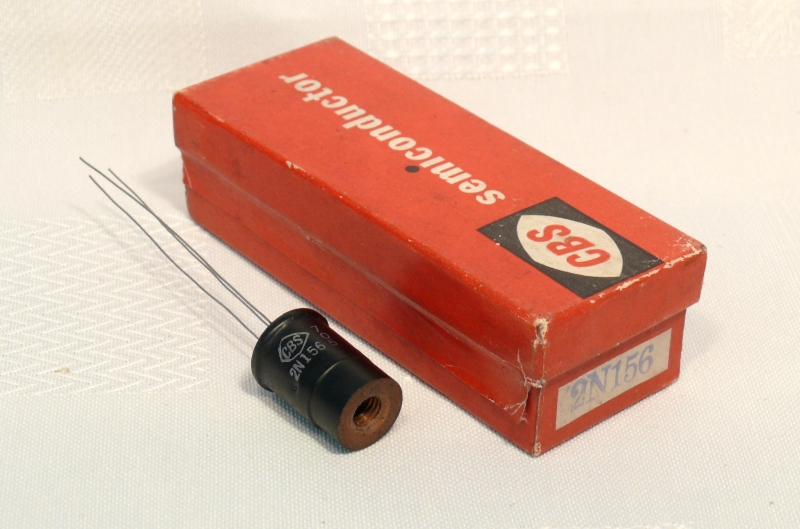

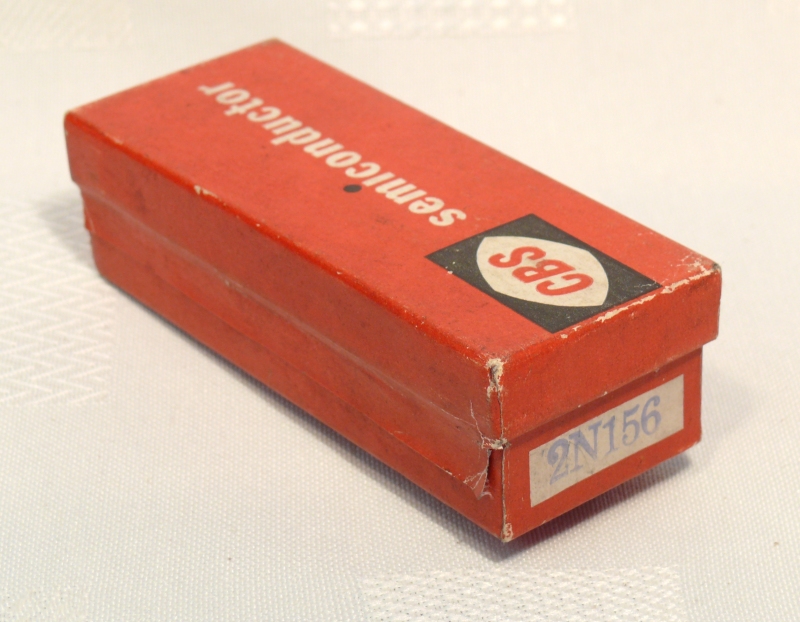

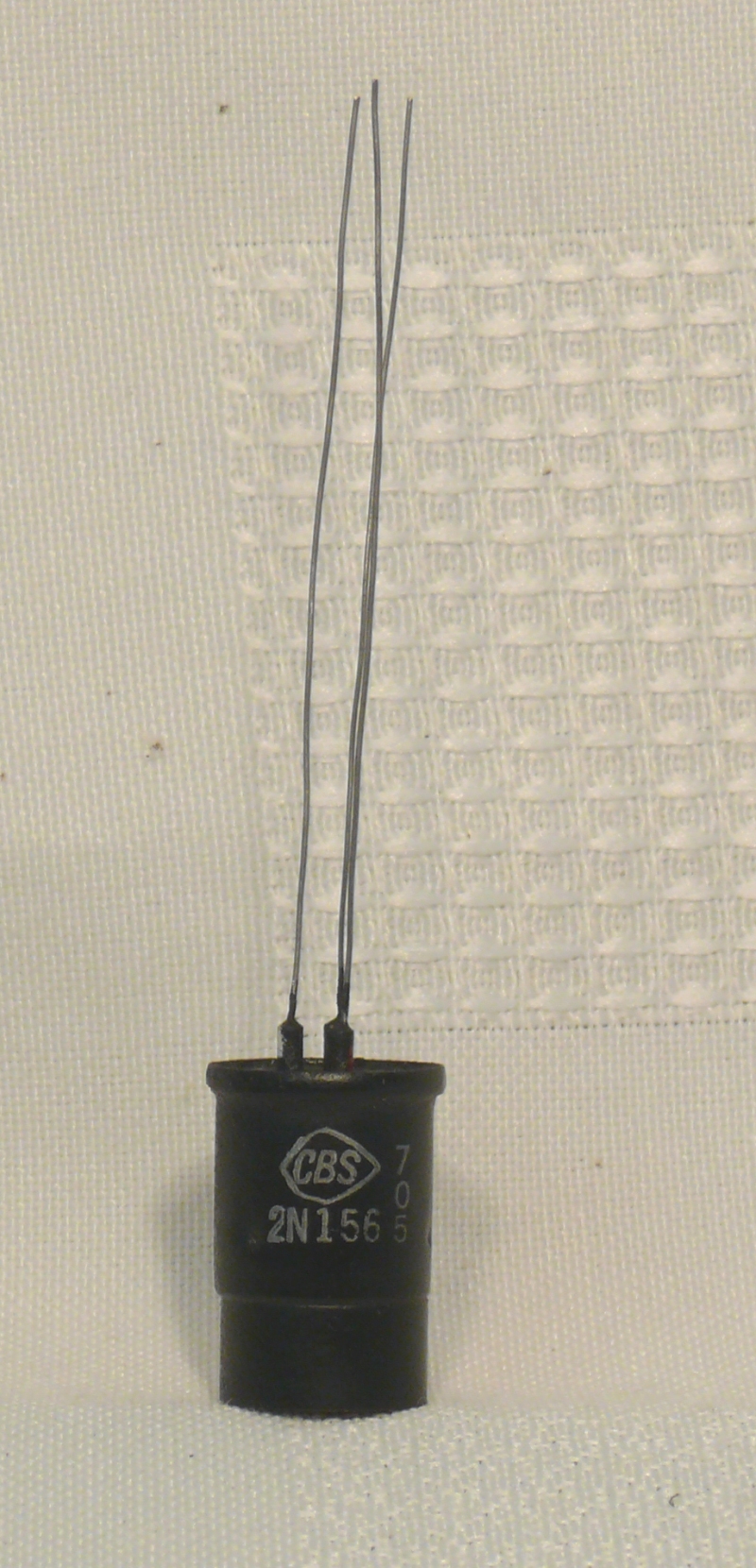

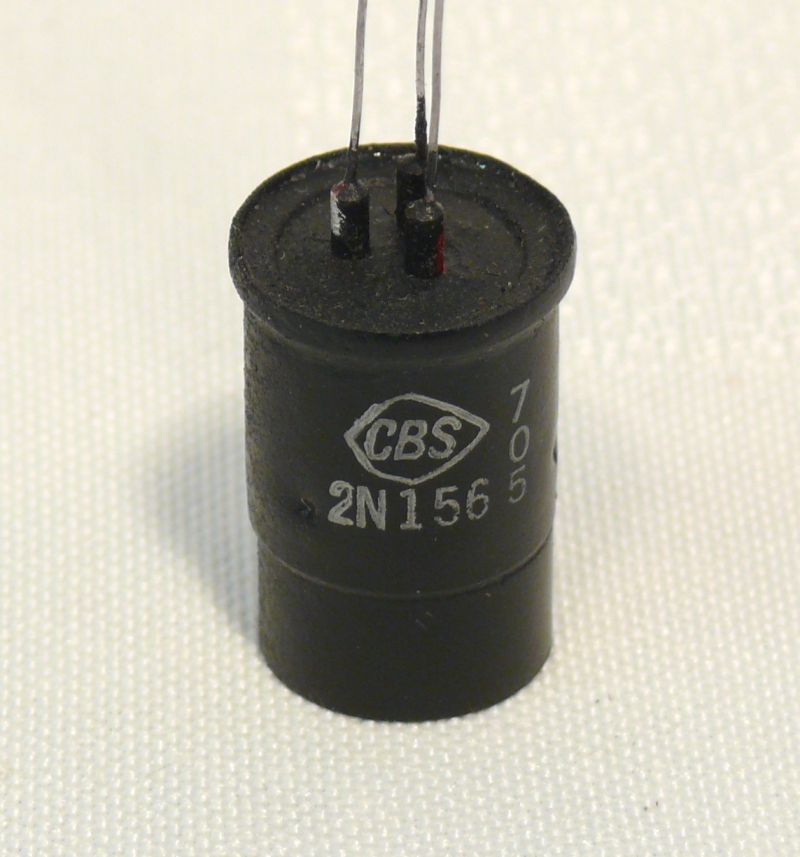

| 2N156 | Type | : | 2N156, Germanium PNP Power transistor (For Sale, 50USD) |
|
|
Manufacturer | : | CBS-Semiconductor, "Colombia Broadcasting System” |
| Year | : | 1957, week 50 (1pcs. for sale) | |
| Package, Case | : | Carton box, TO-13 | |
| Spec's | : | Vcbo=-30V, Vceo=-?V, Hfe=24-40, Ic=-3A, Icbo=10uA, P=1.5W, f(T)=180kHz, Cobo=25pF | |
| Photo's | : | Picture1, Picture2, Picture3, Picture4 |

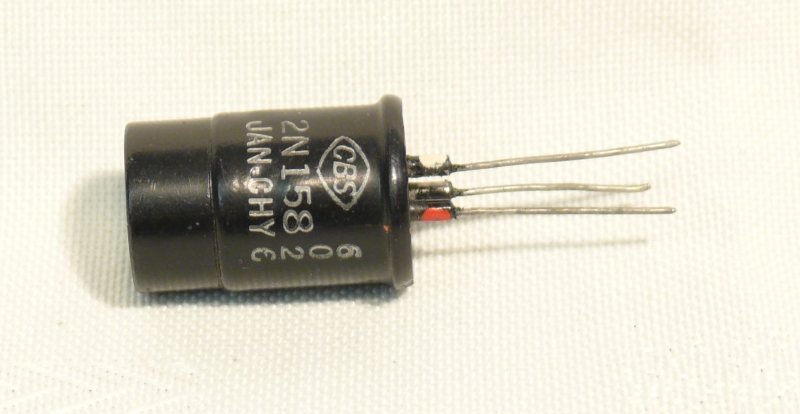

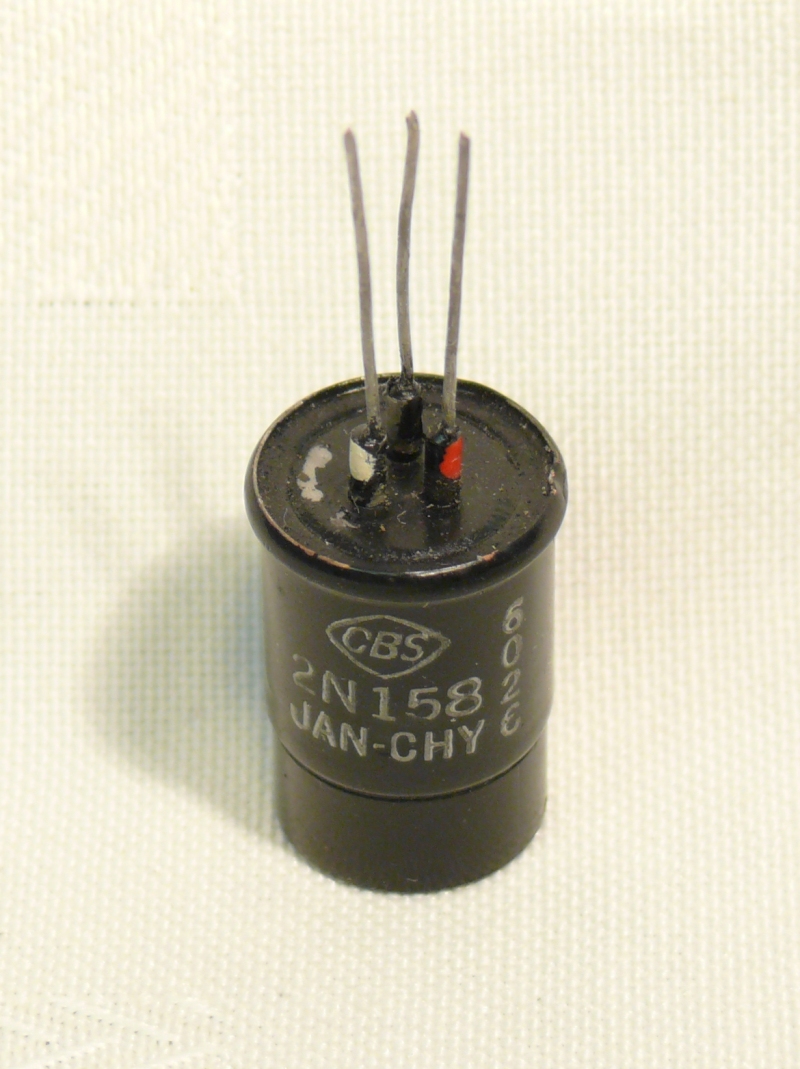

| 2N158 | Type | : | 2N158, Germanium PNP Power transistor (For Sale, 20USD) |
|
|
Manufacturer | : | CBS-Semiconductor, "Colombia Broadcasting System” |
| Year | : | 1956, week 26 (1pcs. for sale) | |
| Package, Case | : | Carton box, TO-13 | |
| Spec's | : | Vcbo=-60V, Vceo=-?V, Hfe=21-36, Ic=-3A, Icbo=1mA, P=1.5W, f(T)=180kHz, Cobo=?pF | |
| Photo's | : | Picture1, Picture2 |

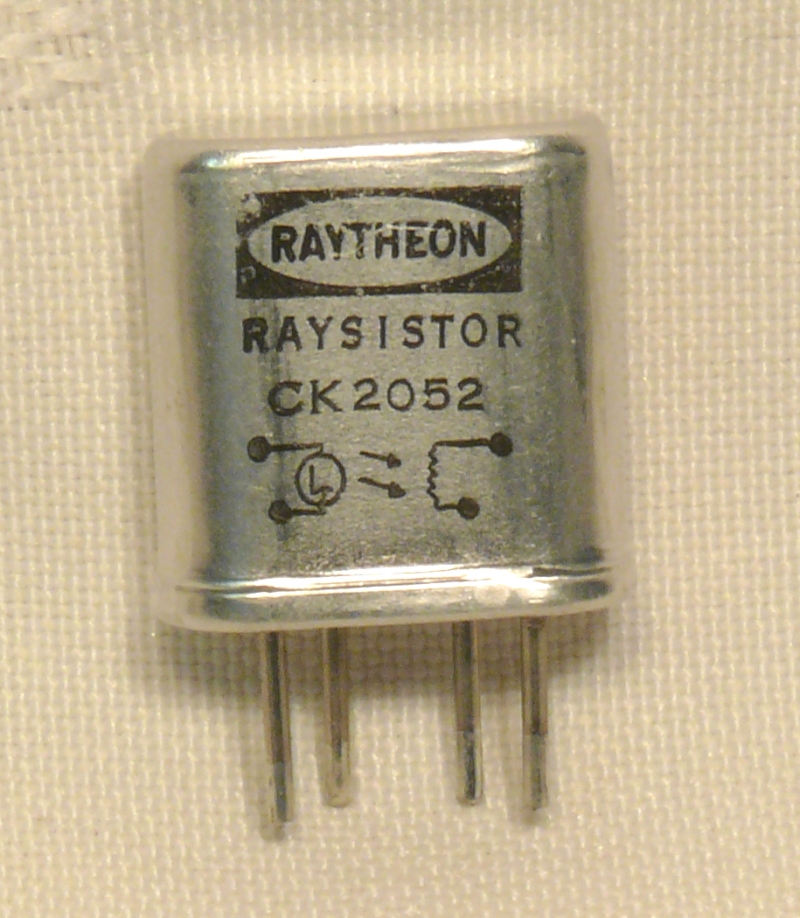

| CK2052 | Type | : | CK2052 Raysistor (For Sale, 20USD) |
|
|
Manufacturer | : | Raytheon |
| Year | : | Early sixties, (1pcs. for sale) | |
| Package, Case style | : | None, Muscle TO-22 | |
| Spec's | : | Voltage=0-?V; Nominal current range=0-?mA; Resistance (on)=?-?Ohms; Resistance (off)=?x?; Voltage(max)=?V; Power(max)=?mW; Typical switching time=?ms(on) ?ms(off) | |
| Photo's | : | Picture1 |
Wanted Vintage Transistors:
| 2SK77 | Type | : | 2SK77 Muscle TO3 VMOSFET, used in the B1 Power Amplifier of Yamaha (Wanted) |
|
|
Manufacturer | : | Yamaha |
| Year | : | 1973 | |
| Package, Case style | : | None, Muscle TO3 | |
| Spec's | : | Vce(max)=?V, Power Gain=?dB, Current Gain=?times, Idc=?A, P=?W | |
| Photo's | : | Photo1 |
| A or M 1725 | Type | : | A or M 1725 (Wanted) This transistor is a PNP germanium point contact transistor |
|
|
Manufacturer | : | Western Electric, |
| Year | : | Early fifties | |
| Package, Case style | : |
Boxed, Metal cartridge style with removable protective tubing |
|
| Spec's | : | Datasheet unknown | |
| Photo's | : | Picture1, |
| A or M 1727 | Type | : | A or M 1727 (Wanted) This transistor is a PN Junction Diode |
|
|
Manufacturer | : | Western Electric, |
| Year | : | Early fifties | |
| Package, Case style | : |
Boxed, ? |
|
| Spec's | : | Datasheet unknown Low forward impedance | |
| Photo's | : | Picture1, |
| A or M 1728 | Type | : | A or M 1728 (Wanted) This transistor is a PN Junction Diode |
|
|
Manufacturer | : | Western Electric, |
| Year | : | Early fifties | |
| Package, Case style | : |
Boxed, ? |
|
| Spec's | : | Datasheet unknown High reverse impedance | |
| Photo's | : | Picture1, |
| A or M 1723 | Type | : | A or M 1723 (Wanted) This transistor is a PNP germanium point contact transistor |
|
|
Manufacturer | : | Western Electric, |
| Year | : | Early fifties | |
| Package, Case style | : |
Boxed, Metal cartridge style with removable protective tubing |
|
| Spec's | : | Datasheet unknown | |
| Photo's | : | Picture1, |
| A or M 1734 | Type | : | A or M 1734 (Wanted) This transistor is a PNP germanium point contact transistor |
|
|
Manufacturer | : | Western Electric, |
| Year | : | Early fifties | |
| Package, Case style | : |
Boxed, Metal cartridge style with removable protective tubing |
|
| Spec's | : | Datasheet unknown | |
| Photo's | : | Picture1, |
| A or M 1752-1, -2, -3 | Type | : | A or M 1752-1=2N27, 1752-2=2N28, 1752-3=2N29 Transistor (Wanted) These transistor are PNP devices |
|
|
Manufacturer | : | Western Electric, |
| Year | : | Early fifties | |
| Package, Case style | : |
Boxed, ? |
|
| Spec's | : | Datasheet unknown | |
| Photo's | : | Picture1, |
| A or M 1754 | Type | : | A or M 1754 (Wanted) This transistor is a PN Junction Diode |
|
|
Manufacturer | : | Western Electric, |
| Year | : | Early fifties | |
| Package, Case style | : |
Boxed, ? |
|
| Spec's | : | Datasheet unknown High forward to back ratio | |
| Photo's | : | Picture1, |
| A or M 1755 | Type | : | A or M 1755 (Wanted) This transistor is a PN Junction Diode |
|
|
Manufacturer | : | Western Electric, |
| Year | : | Early fifties | |
| Package, Case style | : |
Boxed, ? |
|
| Spec's | : | Datasheet unknown Sharo breakaway | |
| Photo's | : | Picture1, |
