Pro-Electron:
The European semiconductor standard Pro-Electro was set up in 1966 in Brussels, Belgium. In 1983 it was merged with the European Electronic Component Manufacturers Association (EECA) and since then operates as an agency of the EECA. The code is simple <2 Letters> <Serial Number> <Suffix>. The first two letters stands for the material of the device, the optional third letter is mean for industrial, Space or professional use. First letter: A=GE (Germanium) with a band gap of 0.6-1eV, B=Si (Silicium) with a band gap of 1.0-1.3eV, C=GaAs (Gallium Arsenide) with a band gap more than 1.3eV, R= Composite materials. Second letter: A=RF Diode, B=Varicap Diode, C=Transistor AF Small signal, D=Transistor, AF High Power, E=Tunnel Diode, F=Transistor HF small signal, K=Hall effect sensor, L=Transistor HF High Power, N=Optocoupler, P=Radiation Sensor, Q=Radiation device (Laser), R=Thyristor Device, S=Transistor High Power Switching (old code), T=Thyristor High Power Device, U=Transistor High Power Switching Device, Y=Rectifier Diode, Z=Zener Diode or Voltage Regulator. There are more standards, like the Japanese JIS "Japanese Industrial Standard" and the American JEDEC "Joint Electron Devices Engineering Council" standard. The suffix is used for Hfe definition A=low (Hfe between 100-260), B=medium (Hfe between 240-500) and C=High (Hfe between 450-900).

Because of the late standardization of the European semiconductor devices many different codes were used by a several manufactures, the code their used was most of the time Brand specified. Some examples are AEI/BTH (GT and S numbering), Mullard (OA, OC series, STC/Brimar (M, GD, JK and TK series), Ediswan ( EFT, XA, XB and XC series), GEC (EW, S and SX series), New Markert (V, NKT series) and there are many more to find.

Pro-Electron-series:

Pro-Electron Type Transistor Mfr. Application Pkg no. Pc (mW) @250C Vce (V) Vcb (V) Ic (mA) Tj0C Hfe Ft (Mhz) Cobo (pF) Substitute transistors
AC105 PNP TFK LF XO1 400 -18 -40 1A 75 15     AC128
AC106 PNP TFK LF XO1 400 -18 -40 1A 75 25     AC128
AC107 PNP MUB LF XO1 80 -15 -15 10 75 35 1 20 AC125
AC107N PNP NEM LF TO1 80 -12 -15 10 75 35 0.5 50 AC125
AC108 PNP SID LF TO1 30 -20 -20 50 80 30 0.5 50 AC125
AC109 PNP SID LF TO1 30 -15 -20 50 80 50 0.5 50 AC125
AC110 PNP SID LF TO1 30 -15 -20 50 80 75 0.5 50 AC126
AC113 PNP   LF TO1 200 -16 -26 80 75 30 0.7 60 AC125
AC114 PNP   LF TO1 110 -16 -26   85 40     AC128
AC115 PNP   LF TO1 200 -16 -26 80 75 15 0.7 60 AC125
Pro-Electron Type Transistor Mfr. Application Pkg no. Pc (mW) @250C Vce (V) Vcb (V) Ic (mA) Tj0C Hfe Ft (Mhz) Cobo (pF) Substitute transistors
AC116 PNP TFK LF XO4 145 -18 -30 200 90 50 0.5 40 AC188K
AC117 PNP TFK LF XO4 1W -18 -32 1A 90 40 0.5 40 AC188K
AC120 PNP SID LF TO1 210 -20 -20 300 80 30 0.8 85 AC128
AC121 PNP SID LF TO1A 900 -20 -20 300 90 30 1 40 AC128
AC121/4 PNP SID LF TO1A 900 -20 -20 300 90 30 1 40 AC128
AC1121/5 PNP SID LF TO1A 900 -20 -20 300 90 50 1 40 AC128
AC121/6 PNP SID LF TO1A 900 -20 -20 300 90 75 1 40 AC128
AC121/7 PNP SID LF TO1A 900 -20 -20 300 90 125 1 40 AC128
AC122 PNP TFK LF TO1A 130 -18 -30 300 90 40 1 50 AC125
AC123 PNP TFK LF XO4 145 -32 -45 200 90 50 0.5 40 AC188K

Mullard-series:

Type Type Transistor Mfr, Application Pkg no. Pc (mW) @250C Vce (V) Vcb (V) Ic (mA) Tj0C Hfe Ft (Mhz) Cobo (pF) Substitute transistors

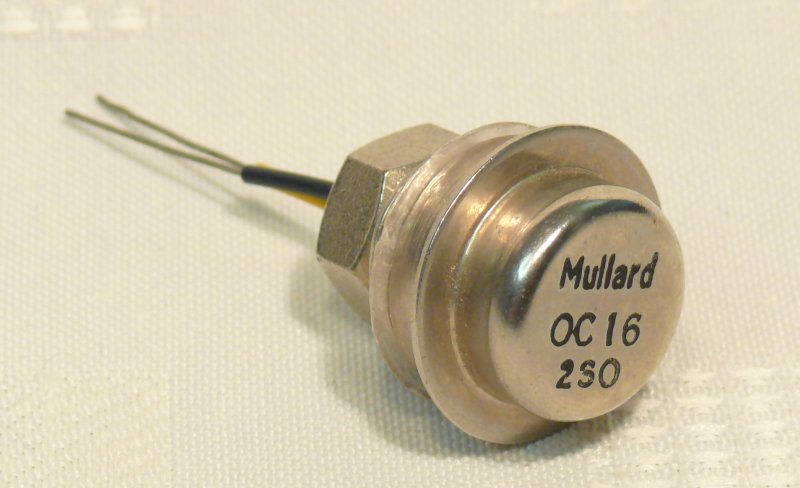

OC16 PNP Mul   MT34 6W -32   1.5A   45 0.2
OC19 PNP Mul   TO3 8W -32   1.5A   45 0.2
OC20 PNP Mul LF TO3 30W -75 -100 10A 100 25 0.25 250 NKT240
OC22 PNP Mul HF TO3 16W -32 -47 1A 80 50 2   AL103
OC23 PNP Mul HF TO3 16W -24 -55 1A 80 50 2   AL103
OC24 PNP Mul HF TO3 16W -32 -47 1A 80 50 2   AL103
OC25   Mul LF TO3 23W -40 -40 4A 100 15 0.2   ASZ16
OC26 PNP Mul   TO3 12W     3.5A   >20 3
OC28 PNP Mul LF TO3 30W -60 -80 8A 100 20 0.2 200 ASZ15
OC29 PNP Mul LF TO3 30W -32 -80 8A 100 45 0.2 200 ASZ16
OC35 PNP Mul LF TO3 30W -32 -60 8A 100 25 0.2 200 ASZ16
Type Type Transistor Mfr, Application Pkg no. Pc (mW) @250C Vce Max Vcb (V) Ic (mA) Tj0C Hfe Ft (Mhz) Cobo (pF) Substitute transistors
OC36 PNP Mul LF TO3 30W -32 -80 -8A 100 30 0.2 200 ASZ16
OC41 PNP Mul HF XO1 50 -15 -16 -50 80 35 4 12 OC44N
OC41N PNP Mul HF TO1 83 -15 -16 -50 80 20 4 12 OC44N
OC42 PNP Mul HF XO1 50 -15 -16 -50 80 70 7 12 OC44N
OC42N PNP Mul HF TO1 83 -15 -16 -50 80 40 5 12 OC44N
OC43 PNP Mul HF XO1 80 -15 -15 -50 80 100 15 12 OC44N
OC43N PNP Mul HF TO1 83 -15 -15 -50 80 50 12 12 OC44N
OC44 PNP Mul HF XO1 83 -12 -15 -10 80 100 8 12 OC44N
OC44N PNP Mul HF TO1 83 -15 -15 -5 75 45 8 12 OC44N

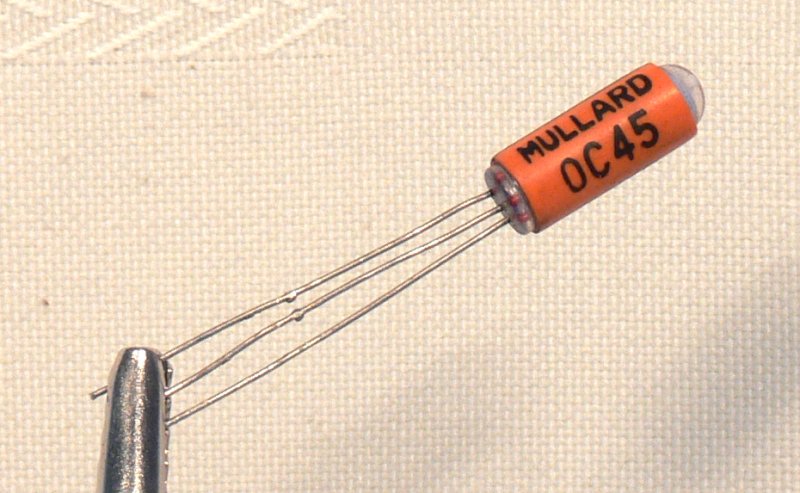

OC45 PNP Mul HF XO1 83 -15 -15 -10 80 50 4 12 OC44N

GEC (General Electric Company)-series:

Type Type Transistor Mfr, Application Pkg no. Pc (mW) @250C Vce (V) Vcb (V) Ic (mA) Tj0C Hfe Ft (Mhz) Cobo (pF) Substitute transistors
GET1 Point Contact GEC     100 -50   -15
GET2 Point Contact GEC     75 -30   -15
GET3 PNP GEC     100 -15   -250     1
GET4 PNP GEC     100 -30   -70     1
GET5 PNP GEC     200 -30   -350     1
GET6 PNP GEC     50 -12   -50     1
GET7 PNP GEC LF XO6 20W -16 -16 8A 80 7 0.15   OC28
GET8 PNP GEC LF XO6 20W -32 -32 8A 80 7 0.15   OC28
GET9 PNP GEC LF XO6 20W -64 -64 8A 80 7 0.15   OC28
GET15 PNP GEC     600 -15   -350   70 0.95
Type Type Transistor Mfr, Application Pkg no. Pc (mW) @250C Vce (V) Vcb (V) Ic (mA) Tj0C Hfe Ft (Mhz) Cobo (pF) Substitute transistors
GET16 PNP GEC     600 -30   -350     0.9
GET20 PNP GEC     600 -30   -500     1
GET102 PNP GEC LF TO1 200 -30 -30 -1A 85 60 0.75 90 AC126
GET103 PNP GEC LF TO1 200 -30 -30 -1A 85 30 0.75 90 AC126
GET104 PNP GEC LF TO1 200 -30 -30 -1A 85 30 0.75 90 AC126
GET105 PNP GEC LF XO5 800 -40 -40 -1A 85 30 0.6 75 CV7002
GET106 PNP GEC LF TO1 200 -15 -15 -1A 85 30 0.75 90 AC125
GET110 PNP GEC LF XO5 800 -40 -40 -1A 85 20 0.6 75 CV7002
GET111 PNP GEC LF TO1 200 -60 -60 -1A 85 15 0.75 90 OC77N
GET113 PNP GEC LF TO1 200 -15 -15 -1A 85 60 0.75 90 AC126

Ediswan/Mazda-series:

Type Type Transistor Mfr, Application Pkg no. Pc (mW) @250C Vce (V) Vcb (V) Ic (mA) Tj0C Hfe Ft (Mhz) Cobo (pF) Substitute transistors
XA101 PNP Edw     120   -20 -10 65 35 2 14 OC44N
XA102 PNP Edw     60 -16 -20 -50 65 60 4 12 OC44N
XA111 PNP Edw   TO1 120   -20 -10 65 35 2 14 OC44N

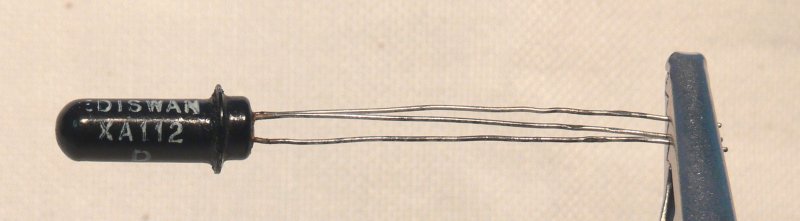

XA112 PNP Edw   TO1 60 -16 -20 -50 65 60 4 12 OC44N
XA121 PNP Edw   TO7 80   -25 -10 85 60 20 3 AF124
XA122 PNP Edw   TO7 80   -25 -10 85 60 20 3 AF124
XA123 PNP Edw   TO7 80   -25 -10 85 60 20 3 AF124
XA124 PNP Edw   TO7 80   -25 -10 85 60 20 3 AF124
XA126 PNP Edw   TO7 80   -25 -10 85 60 20 3 AF124
XA131 PNP Edw   TO44 120   -30 -10 85 60 50 3 AF124
Type Type Transistor Mfr, Application Pkg no. Pc (mW) @250C Vce (V) Vcb (V) Ic (mA) Tj0C Hfe Ft (Mhz) Cobo (pF) Substitute transistors
XA141 PNP Edw   TO5 120 -1 -30 -10 85 45 20 3 AF124
XA142 PNP Edw   TO5 120 -1 -30 -10 85 45 30 3 AF124
XA143 PNP Edw   TO5 120 -1 -30 -10 85 45 50 3 AF124
XA151 PNP Edw     60 -16 -20   65 90     OC44N
XA152 PNP Edw     60 -16 -20   65 40     OC44N
XA161 PNP Edw   TO5 150 -12 -13 -20 85 50 20 2 AF124
XA162 PNP Edw   TO5 150 -12 -13 -20 85 50 30 2 AF124
XB102 PNP Edw     90 -12 -16   55 20/44     AC125
XB103 PNP Edw     90 -12 -16   55 45/100     AC125

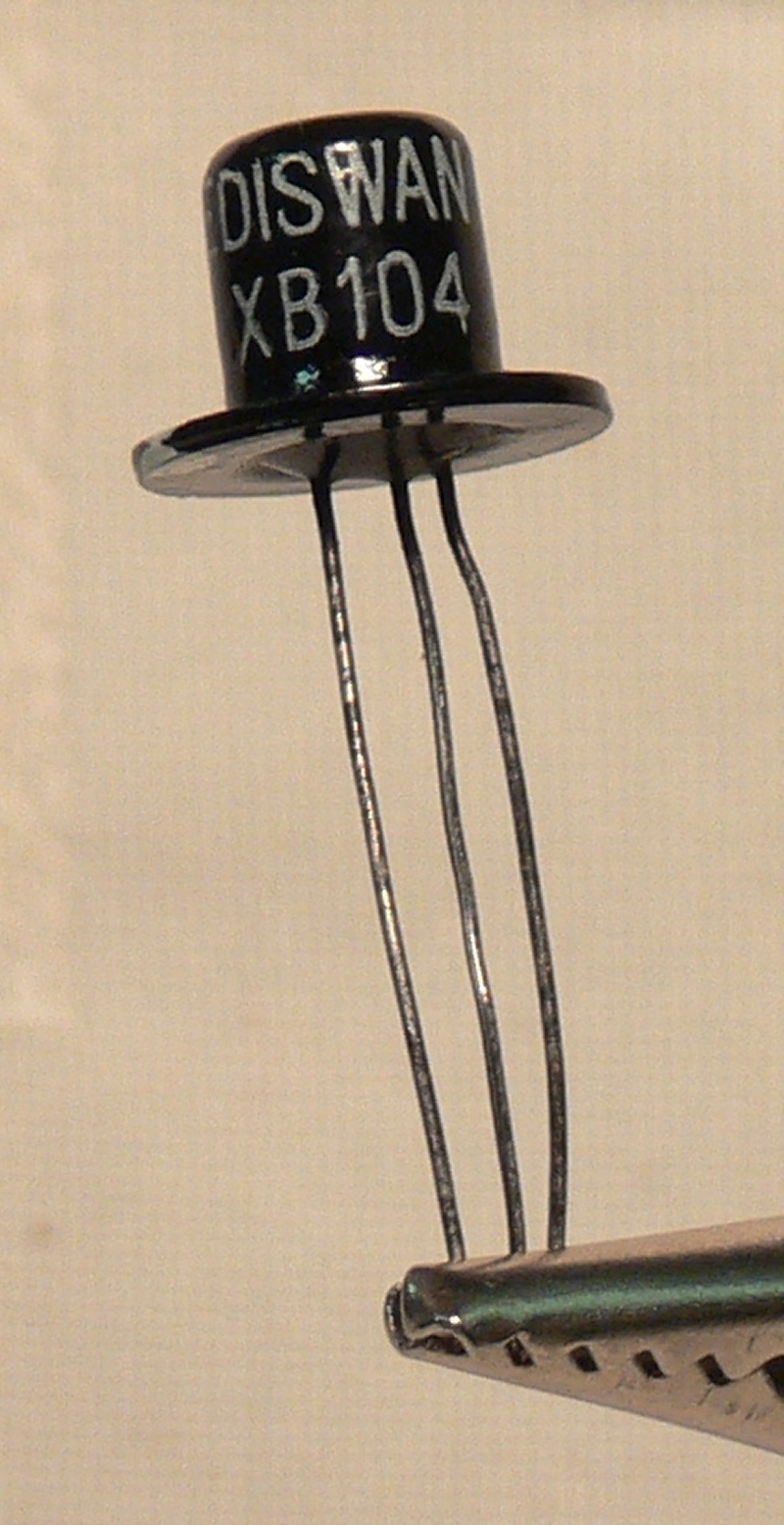

XB104 PNP Edw     90 -16 -20   55 4760     AC125

STC-series:

Type Type Transistor Mfr, Application Pkg no. Pc (mW) @250C Vce (V) Vcb (V) I (mA) Tj0C Hfe Ft (Mhz) Cobo (pF) Substitute transistors
TP1 Point Contact STC     150 -50   -30
TP2 Point Contact STC     150 -50   -30
TJ1 PNP STC     200 -20   -50   20 0.5
TJ2 PNP STC     200 -20   -50   40 0.6
TJ3 PNP STC     200 -20   -50   60 0.8
TS1 PNP STC     50 -20   -50   20 0.5
TS2 PNP STC     50 -20   -50   40 0.6
TS3 PNP STC     50 -20   -50   60 0.8
TS4 PNP STC     50 -30   -50   10+
TS7 PNP STC     70 -12       35 4.5
TS8 PNP STC     70 -6       60 8.5
Type Type Transistor Mfr, Application Pkg no. Pc (mW) @250C Vce (V) Vcb (V) I (mA) Tj0C Hfe Ft (Mhz) Cobo (pF) Substitute transistors

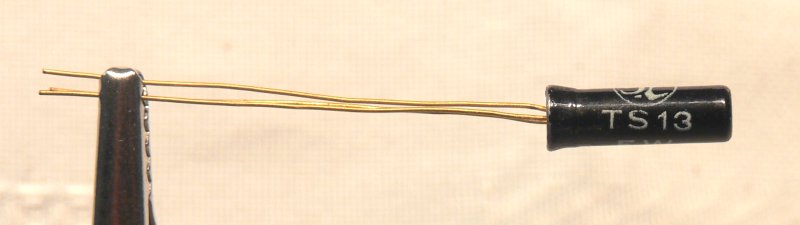

TS13 PNP STC     70 -20       55 0.8
TS14 PNP STC     70 -20       35 0.7
TS15 PNP STC     70 -45       40 0.75
TK20 PNP STC LF X18 200 -12 -30 -50 75 20/100 3   AC128
TK20B PNP STC LF X18 200 -12 -30 -50 75 20/100 3   AC128

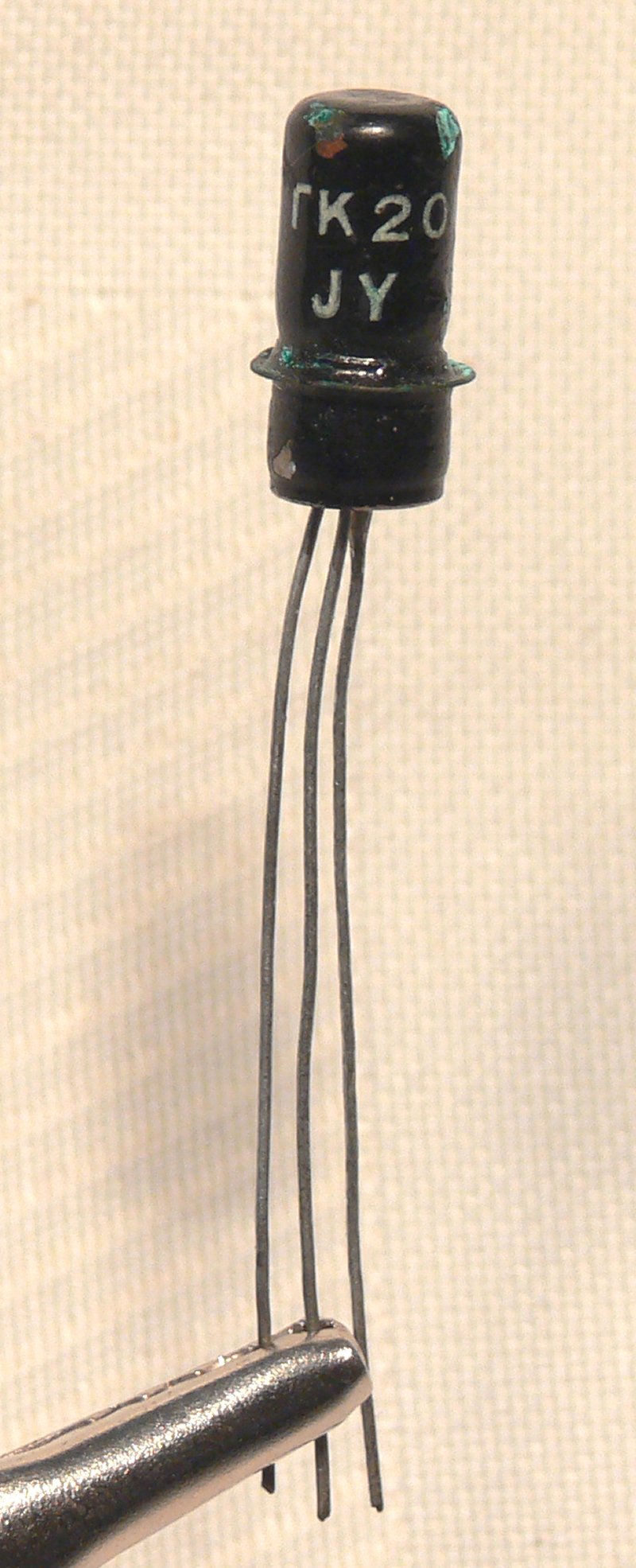

TK20C PNP STC LF X18 200 -12 -30 -50 75 20/100 3   AC128
TK21 PNP STC LF X18 200 -20 -30 -100 75 15 1   AC125
TK21B PNP STC LF X18 200 -20 -30 -100 75 15 1   AC125
TK21C PNP STC LF X18 200 -20 -30 -100 75 15 1   AC125
TK23 PNP STC LF X18 200 -20 -40 -100 75 30 0.5   AC125
TK23A PNP STC LF X18 200 -30 -40 -100 75 30 0.5   AC125
TK23B PNP STC LF X18 200 -30 -40 -100 75 30 0.5   AC125
